NOW INDIVIDUALS CAN GET THE SAME COMMERCIAL MODELS THAT OEMs GET

Quantity Discounts Available

Call for O.E.M. Pricing

Boom Angle Models

Note: the below model scale can be changed to any layout.
Example: 0-to-100, 60-to-40, 80-to-20, 20-to-80, etc.

Model #1080: $38.00 each

Measures 6-1/2 inch x 3 inch. Scale reads 10 degrees on left to 80 degrees on right. Bolt or tape mount.

Model #8010: $38.00 each

Measures 6-1/2 inch x 3 inch. Scale reads 80 degrees on left to 10 degrees on right. Bolt or tape mount.

Miniature Models

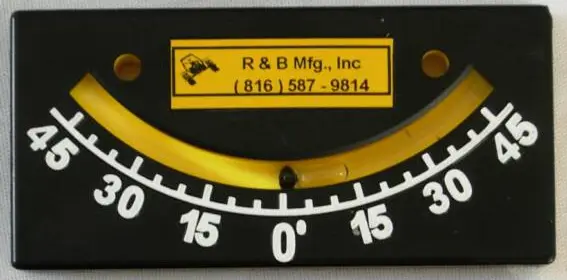

Model #45S: $29.00 each

Measures 4 inch x 1-3/4 inch.

Bolt or tape mount.

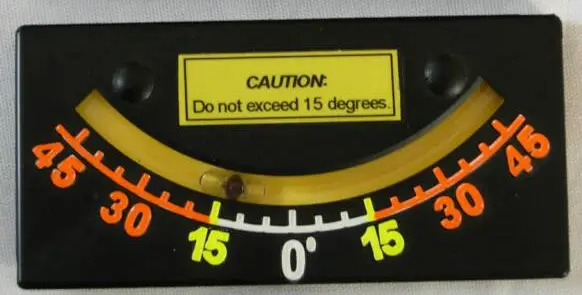

Model #45C: $29.00 each

Measures 4 inch x 1-3/4 inch.

Yellow OK, 16-up red for danger.

Bolt or tape mount.

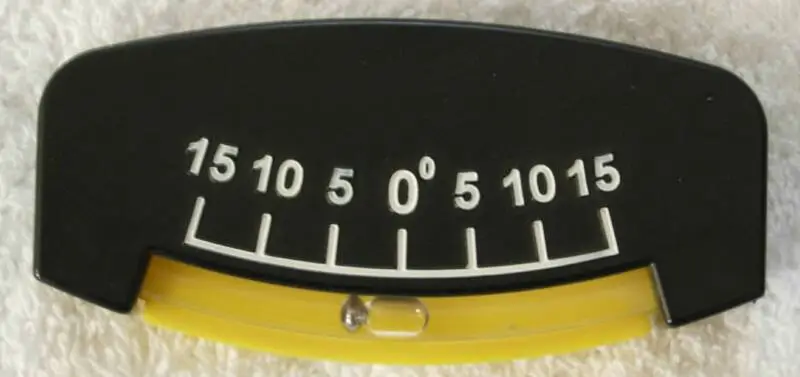

Model #1576: $29.00 each

Measures 3-1/2 inch x 1-1/2 inch. Adhesive mount.

Model #76S: $29.00 each

Measures 3-1/2 inch x 1-1/2 inch.

Available with or without bolt holes or tape mount. Adhesive mount.

Model #76C: $29.00 each

Measures 3-1/2 inch x 1-1/2 inch. 5 painted yellow for caution, and 6-up red for danger. Adhesive mount.

Model #9090: $29.00 each

Measures 3-1/2 inch x 2 inch.

Model #6AC: $19.00 each

Measures 3-1/2 inch x 3/4 inch.

Lighted Models

Model #15PHO: $69.00 each

This model was designed at the request of the military.

The numbers, hash marks and tube are painted white phosphorescent and glow in the dark. If the model is exposed to light, it “charges” the paint. Measures 5 inch x 2 inch, no power required. Glow will last 5-6 hours.

Need Mounting Brackets?

We offer mounting options for most of our inclinometers. Bolt mount, adhesive strip mount, or mounting brackets for un-level mounting surfaces.

Our mounting brackets allow mounting of our inclinometers on most surfaces even if you do not have a vertical mounting surface. Our brackets are adjustable for and aft, and side to side, to insure mounting is correct, and level.

Models #25 and #45 have 1 inch x 2 inch footprint and are adjustable.

$7.00 each

Model #25 shown with mounting bracket mounted on a vertical surface.

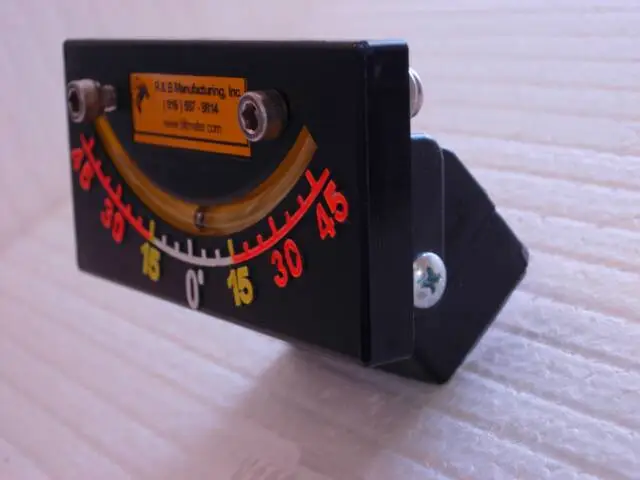

Angled view of Model #45 shown on 45 degree angle mounting surface.

Side view of Model #45 shown on a 45 degree angle mounting surface using bracket.

Rear view of Model #25 showing horizontal mounted mounting bracket.
